Secure Binary 2.1

Version 2.1 added support for digital signatures.

The SB 2.0 and 2.1 file format also uses AES encryption for confidentiality and HMAC for extending trust from the signed part of the SB file to the command and data part of the SB file. These two keys (AES decrypt key and HMAC key) are wrapped in the RFC3394 key blob, for which the key wrapping key is the SBKEK key

SB2 generation using BD file

The tool uses an input command file to control the sequence of bootloader commands present in the output file. This command file is called a “boot descriptor file” or BD file for short. The image location is stated in the “sources” section of the .bd file. The SB key in the text file is used for encryption with the nxpimage command line tool.

It is possible to use NXP elftosb tool user guide located here.

Note

Please note that some functionality described in the UG may not be supported in SPSDK SB2 parser.

For more information about the Secure boot setup for LPC55Sxx family follow the AN12283.

Supported Commands

Supported commands for SB2.1

Command	Description	Example
load	The load statement is used to store data into the memory. The load command is also used to write to the flash memory. When loading to the flash memory, the region being loaded to must be erased before to the load operation. The most common form of a load statement is loading a source file by name.	Example: section (0) { // load an entire binary file to an address load myBinFile > 0x70000000; // load an eight byte blob load {{ ff 2e 90 07 77 5f 1d 20 }} > 0xa0000000; // 4 byte load IFR statement load ifr 0x1234567 > 0x30; // Program fuse statement load fuse {{00 00 00 01}} > 0x01000188; // load to sdcard load sdcard {{aa bb cc dd}} > 0x08000188; load @288 {{aa bb cc dd}} > 0x08000188; }
fill	Fill is a type of load command used for filling a region of memory with pattern.	Example: section(0) { // pattern fill load 0x55.b > 0x2000..0x3000; // load two bytes at an address load 0x1122.h > 0xf00; }
erase	The erase statement inserts a bootloader command to erase the flash memory. There are two forms of the erase statement. The simplest form (erase all) creates a command that erases the available flash memory. The actual effect of this command depends on the runtime settings of the bootloader and whether the bootloader resides in the flash, ROM, or RAM.	Example: section (0){ // Erase all erase all; // Erase unsecure all erase unsecure all; // erase statements specifying memory ID and range erase @8 all; erase @288 0x8001000..0x80074A4; erase sdcard 0x8001000..0x80074A4; erase mmccard 0x8001000..0x80074A4; }
enable	Enable statement is used for initialization of external memories using a parameter block that was previously loaded to RAM.	Example: section (0){ # Load quadspi config block bin file to RAM, use it to enable QSPI. load myBinFile > 0x20001000; enable qspi 0x20001000; }
encrypt	Encrypt holds an ID, which is a reference to keyblob to be used for encryption. So the encrypt command requires a list of keyblobs, the keyblob ID and load command.	e.g. encrypt (0){ load myImage > 0x0810000; }
keywrap	Keywrap holds keyblob ID to be encoded by a value stored in load command and stored to address defined in the load command.	Example: keywrap (0) { load {{ 00000000 }} > 0x08000000; }
keystore_to_nv	The keystore_to_nv statement instructs the bootloader to load the backed up keystore values back into keystore memory region on non-volatile memory.	Example: section (0) { keystore_to_nv @9 0x8000800;
keystore_from_nv	The keystore_to_nv statement instructs the bootloader to load the backed up keystore values back into keystore memory region on non-volatile memory.	Example: section (0) { keystore_to_nv @9 0x8000800;
version_check	Validates version of secure or non-secure firmware. The command fails if version is < expected.	Example: section (0) { version_check sec 0x2; version_check nsec 2; }
jump	The “jump” command produces the ROM_JUMP_CMD. See the boot image format design document for specific details about these commands, such as the function prototypes they expect.	Example: section (0) { # jump to the entrypoint jump mySRecFile; # jump to a fixed address jump 0xffff0000; }

Example of SB2 generation for 4 root keys

nxpimage: nxpimage sb21 export -k "sbkek.txt" -c "commandFile.bd" -o "output.sb2" -s private_key_1_2048.pem -S certificate_1_2048.der.crt -R certificate_1_2048.der.crt -R certificate_2_2048.der.crt -R certificate_3_2048.der.crt -R certificate_4_2048.der.crt -h "RHKT.bin" "input.bin"

Created SB2 file can be loaded into the device using blhost receive-sb-file command. blhost -p COMxx receive-sb-file <path to the secured binary(.sb2)>

Description of how to use BD file is in bellow chapter.

Parser grammar

This is a user guide describing how to generate a secure binary rev. 2.1 based on a configuration file (a so called BD file or command file) and additional inputs like certificates, keys, binary files etc.

Supported Syntax

The syntax is written in EBNF (Extended Backus Naur Form), however, the elftosb application uses (namely SLY - python implementation of Lex/Yacc) only BNF. From this perspective the graphs visualize the EBNF form with the grammar and the conversion into BNF as well as remarks what is supported.

command_file:

EBNF: command_file

         ::= pre_section_block* section_block*

BNF: command_file

         ::= pre_section_block section_block

no references

Comments:

The options block, constants block, sources block and keyblob block must be defined prior to the section block. There may be multiple blocks in any order, but all must precede the section blocks.

# options, sources, keyblob & constants must precede section block, but there may be
# multiple definitions in any order
options {

}

sources {

}

keyblob (0) {

}

constants {

}

options {

}

# Section blocks must be the very last blocks defined
section (1) {

}

section (2) {

}

pre_section_block:

EBNF: pre_section_block

         ::= options_block

           | constants_block

           | sources_block

           | keyblob_block

BNF: pre_section_block

         ::= pre_section_block options_block

           | pre_section_block constants_block

           | pre_section_block sources_block

           | pre_section_block keyblob_block

           | empty

referenced by:

• command_file

options_block:

EBNF: options_block

         ::= OPTIONS '{' option_def* '}'

BNF: options_block

         ::= OPTIONS '{' option_def '}'

referenced by:

• pre_section_block

Comments:

Example:

options {
    opt1 = "some_string";
    opt2 = 1234;
    opt3 = 1 > 3;
    ...
}

option_def:

EBNF: option_def

         ::= IDENT '=' const_expr ';'

BNF: option_def

         ::= option_def IDENT '=' const_expr ';'

           | empty

referenced by:

• constants_block
• options_block

constants_block:

EBNF: constants_block

         ::= CONSTANTS '{' constant_def* '}'

BNF: constants_block

         ::= CONSTANTS '{' constant_def '}'

referenced by:

• pre_section_block

Comments: Only numbers can be assigned to identifiers in the constants block.

constant_def:

EBNF: constant_def

         ::= IDENT '=' bool_expr ';'

BNF: constant_def

         ::= constant_def IDENT '=' bool_expr ';'

          | empty

referenced by:

• constants_block

sources_block:

EBNF: sources_block

         ::= SOURCES '{' source_def* '}'

BNF: sources_block

         ::= SOURCES '{' source_def '}'

referenced by:

• pre_section_block

source_def:

EBNF: source_def

         ::= IDENT '=' source_value ( '(' option_list? ')' )? ';'

BNF: source_def

         ::= source_def IDENT '=' source_value ';'

           | source_def IDENT '=' source_value '(' option_list ')' ';'

           | empty

referenced by:

• sources_block

Comments:

option_list in source_def is not supported and raises syntax error when used! According to the grammar, identifiers defined in source block are referenced in the grammar as source_name, however, the grammar can’t be defined using this type of token, as there is no rule to distinguish between an identifier token and a source name token. So the grammar uses the IDENT token instead and documents this fact in description, that it’s a source_name identifier.

source_value:

EBNF: source_value

         ::= STRING_LITERAL

           | EXTERN '(' int_const_expr ')'

BNF: source_value

         ::= STRING_LITERAL

           | EXTERN '(' int_const_expr ')'

referenced by:

• source_def

Comments:

The EXTERN keyword references source files defined on the command line as the very last arguments indexed from 0. In the example below, extern(1) would reference the “./file2” file provided on command line.

Command file example:

sources {
    my_binary_file = extern(1); # my_binary_file = file2.bin
}

Command line usage:

elf2sb -c.. -o.. "some/path/to/file1.bin" "./file2.bin"

option_list:

EBNF: option_list

         ::= IDENT '=' const_expr ( ',' IDENT '=' const_expr )*

BNF: option_list

         ::= IDENT '=' const_expr ',' option_list

         | IDENT '=' const_expr

referenced by:

• keyblob_contents
• section_options
• source_def

keyblob_block:

EBNF: keyblob_block

         ::= KEYBLOB '(' int_const_expr ')' '{' keyblob_contents* '}'

BNF: keyblob_block

         ::= KEYBLOB '(' int_const_expr ')' '{' keyblob_contents '}'

referenced by:

• pre_section_block

Comments:

The keyblob block grammar has been modified and it supports only single keyblob_contents definition, which must not be empty!

Example

keyblob (1) {
    (
        start = 0x0800000,
        end = 0x08001000,
        key = "12345678901234567890123456789012",
        counter = "1122334455667788",
        byteSwap = False
    )
    # No further definitions allowed, if present, syntax error will be raised!
}

keyblob_contents:

EBNF: keyblob_contents

         ::= '(' option_list* ')'

BNF: keyblob_contents

         ::= keyblob_contents '(' option_list ')'

         | empty

referenced by:

• keyblob_block

Comments:

The keyblob contents must define:

start [integer] - start address 'maintained' by this keyblob
end [integer] - end address 'maintained' by this keyblob
key [string] - key used to encode data stored into address range defined by this keyblob
counter [string] - TODO
byteSwap [boolean, optional] - TODO

Anything else defined under keyblob is ignored. If definition of keywords listed above, except ‘byteSwap’ is missing, a syntax error will be raised.

section_block:

EBNF: section_block

         ::= SECTION '(' int_const_expr section_options? ')' section_contents

BNF: section_block

         ::= section_block SECTION '(' int_const_expr section_options ')' section_contents

         | empty

referenced by:

• command_file

Comments:

section_options is not supported and raises syntax error when used!

section_options:

EBNF: section_options

         ::= ';' option_list?

BNF: section_options

         ::= ';' option_list

         | ';'

         | empty

referenced by:

• section_block

section_contents:

EBNF: section_contents

         ::= '{' statement* '}'

           | '<=' IDENT ';'

BNF: section_contents

         ::= '{' statement '}'

           | '<=' IDENT ';'

referenced by:

• section_block

Comments:

<= IDENT is not supported and raises syntax error when used!

The IDENT in <= IDENT must be an identifier defined in the sources block, otherwise an error is raised.

statement:

EBNF: statement

         ::= basic_stmt ';'

           | from_stmt

           | if_stmt

BNF: statement

         ::= statement basic_stmt ';'

           | statement from_stmt

           | statement if_stmt

           | empty

referenced by:

• else_stmt
• encrypt_stmt
• if_stmt
• section_contents

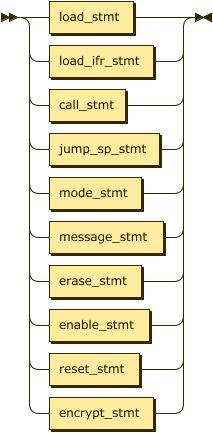

basic_stmt:

EBNF: basic_stmt

         ::= load_stmt

           | load_ifr_stmt

           | call_stmt

           | jump_sp_stmt

           | mode_stmt

           | message_stmt

           | erase_stmt

           | enable_stmt

           | reset_stmt

           | encrypt_stmt

BNF: basic_stmt

         ::= load_stmt

           | load_ifr_stmt

           | call_stmt

           | jump_sp_stmt

           | mode_stmt

           | message_stmt

           | erase_stmt

           | enable_stmt

           | reset_stmt

           | encrypt_stmt

referenced by:

• in_from_stmt
• statement

load_stmt:

EBNF: load_stmt

         ::= LOAD load_data load_target

BNF: load_stmt

         ::= LOAD load_data load_target

referenced by:

• basic_stmt

load_data:

EBNF: load_data

         ::= int_const_expr

           | STRING_LITERAL

           | IDENT

           | section_list ( FROM IDENT )?

           | BINARY_BLOB

BNF: load_data

         ::= int_const_expr

           | STRING_LITERAL

           | IDENT

           | section_list

           | section_list FROM IDENT

           | BINARY_BLOB

referenced by:

• load_stmt

load_target:

EBNF: load_target

         ::= '>' ( '.' | address_or_range )

BNF: load_target

         ::= '>' '.'

         | '>' address_or_range

         | '>' empty

referenced by:

• load_stmt

section_list:

EBNF: section_list

         ::= section_ref ( ',' section_ref )*

BNF: section_list

         ::= section_list ',' section_ref

         | section_ref

referenced by:

• load_data

section_ref:

EBNF: section_ref

         ::= '~'? SECTION_NAME

BNF: section_ref

         ::= '~' SECTION_NAME

         | SECTION_NAME

referenced by:

• section_list

erase_stmt:

EBNF: erase_stmt

         ::= ERASE ( address_or_range | ALL )

BNF: erase_stmt

         ::= ERASE address_or_range

         | ALL

referenced by:

• basic_stmt

address_or_range:

EBNF: address_or_range

         ::= int_const_expr ( '..' int_const_expr )?

BNF: address_or_range

         ::= int_const_expr

         | int_const_expr '..' int_const_expr

referenced by:

• erase_stmt
• load_target

symbol_ref:

EBNF: symbol_ref

         ::= IDENT '?' ':' IDENT

BNF: symbol_ref

         ::= IDENT '?' ':' IDENT

referenced by:

• call_target

load_ifr_stmt:

EBNF: load_ifr_stmt

         ::= LOAD IFR int_const_expr '>' int_const_expr

BNF: load_ifr_stmt

         ::= LOAD IFR int_const_expr '>' int_const_expr

referenced by:

• basic_stmt

call_stmt:

EBNF: call_stmt

         ::= call_type call_target call_arg?

BNF: call_stmt

         ::= call_type call_target call_arg

referenced by:

• basic_stmt

call_type:

EBNF: call_type

         ::= CALL

           | JUMP

BNF: call_type

         ::= CALL

           | JUMP

referenced by:

• call_stmt

call_target:

EBNF: call_target

         ::= int_const_expr

           | symbol_ref

           | IDENT

BNF: call_target

         ::= int_const_expr

           | symbol_ref

           | IDENT

referenced by:

• call_stmt
• jump_sp_stmt

call_arg:

EBNF: call_arg ::= '(' int_const_expr? ')'

BNF: call_arg ::= '(' ')'

           | '(' int_const_expr ')'

           | empty

referenced by:

• call_stmt
• jump_sp_stmt

jump_sp_stmt:

EBNF: jump_sp_stmt

         ::= JUMP_SP int_const_expr call_target call_arg?

BNF: jump_sp_stmt

         ::= JUMP_SP int_const_expr call_target call_arg

referenced by:

• basic_stmt

from_stmt:

EBNF: from_stmt

         ::= FROM IDENT '{' in_from_stmt* '}'

BNF: from_stmt

         ::= FROM IDENT '{' in_from_stmt '}'

referenced by:

• statement

in_from_stmt:

EBNF: in_from_stmt

         ::= basic_stmt ';'

           | if_stmt

BNF: in_from_stmt

         ::= in_from_stmt basic_stmt ';'

           | in_from_stmt if_stmt

           | empty

referenced by:

• from_stmt

mode_stmt:

EBNF: mode_stmt

         ::= MODE int_const_expr

BNF: mode_stmt

         ::= MODE int_const_expr

referenced by:

• basic_stmt

message_stmt:

EBNF: message_stmt

         ::= message_type STRING_LITERAL

BNF: message_stmt

         ::= message_type STRING_LITERAL

referenced by:

• basic_stmt

message_type:

EBNF: message_type

         ::= INFO

           | WARNING

           | ERROR

BNF: message_type

         ::= INFO

           | WARNING

           | ERROR

no references

if_stmt:

EBNF: if_stmt   ::= IF bool_expr '{' statement* '}' else_stmt?

BNF: if_stmt   ::= IF bool_expr '{' statement '}' else_stmt

referenced by:

• else_stmt
• in_from_stmt
• statement

else_stmt:

EBNF: else_stmt

         ::= ELSE ( '(' statement* ')' | if_stmt )

BNF: else_stmt

         ::= ELSE '(' statement ')'

         | ELSE if_stmt

         | empty

referenced by:

• if_stmt

encrypt_stmt:

EBNF: encrypt_stmt

         ::= ENCRYPT '(' int_const_expr ')' '{' statement* '}'

BNF: encrypt_stmt

         ::= ENCRYPT '(' int_const_expr ')' '{' statement '}'

referenced by:

• basic_stmt

enable_stmt:

EBNF: enable_stmt

         ::= ENABLE AT_INT_LITERAL int_const_expr

BNF: enable_stmt

         ::= ENABLE AT_INT_LITERAL int_const_expr

referenced by:

• basic_stmt

reset_stmt:

EBNF: reset_stmt

         ::= RESET

BNF: reset_stmt

         ::= RESET

referenced by:

• basic_stmt

const_expr:

EBNF: const_expr

         ::= STRING_LITERAL

           | bool_expr

BNF: const_expr

         ::= STRING_LITERAL

           | bool_expr

referenced by:

• option_def
• option_list

int_const_expr:

EBNF: int_const_expr

         ::= expr

BNF: int_const_expr

         ::= expr

referenced by:

• address_or_range
• bool_expr
• call_arg
• call_target
• enable_stmt
• encrypt_stmt
• jump_sp_stmt
• keyblob_block
• load_data
• load_ifr_stmt
• mode_stmt
• section_block
• source_value

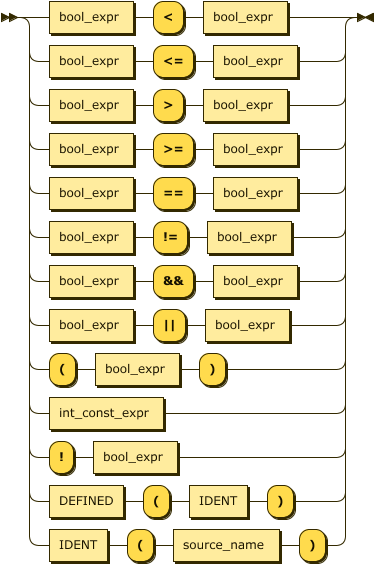

bool_expr:

EBNF: bool_expr

         ::= ( bool_expr ( '<' | '<=' | '>' | '>=' | '==' | '!=' | '&&' | '||' ) | '!' ) bool_expr

           | ( '(' bool_expr | DEFINED '(' IDENT | IDENT '(' source_name ) ')'

           | int_const_expr

BNF: bool_expr

         ::= bool_expr'<' bool_expr

         | bool_expr'<=' bool_expr

         | bool_expr'>' bool_expr

         | bool_expr'>=' bool_expr

         | bool_expr'==' bool_expr

         | bool_expr'!=' bool_expr

         | bool_expr'&&' bool_expr

         | bool_expr'||' bool_expr

         | '(' bool_expr ')'

         | int_const_expr

         | '!' bool_expr

         | DEFINED '(' IDENT ')'

         | IDENT '(' IDENT ')'

referenced by:

• bool_expr
• const_expr
• if_stmt

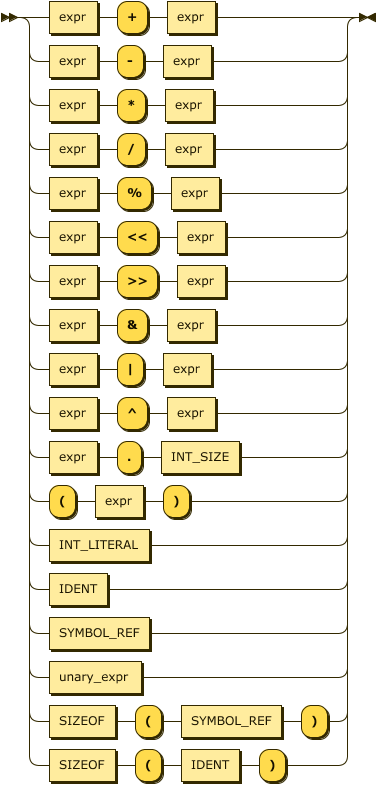

expr:

EBNF: expr

           ::= expr ( ( '+' | '-' | '*' | '/' | '%' | '<<' | '>>' | '&' | '|' | '^' ) expr | '.' INT_SIZE )

           | ( '(' expr | SIZEOF '(' ( SYMBOL_REF | IDENT ) ) ')'

           | INT_LITERAL

           | IDENT

           | SYMBOL_REF

           | unary_expr

BNF: expr

     ::= expr '+' expr

     | expr '-' expr

     | expr '*' expr

     | expr '/' expr

     | expr '%' expr

     | expr '<<' expr

     | expr '>>' expr

     | expr '&' expr

     | expr '|' expr

     | expr '^' expr

     | expr '.' INT_SIZE

     | '(' expr ')'

     | INT_LITERAL

     | IDENT

     | SYMBOL_REF

     | unary_expr

     | SIZEOF '(' SYMBOL_REF ')'

     | SIZEOF '(' IDENT ')'

referenced by:

• expr
• int_const_expr
• unary_expr

unary_expr:

EBNF: unary_expr

         ::= ( '+' | '-' ) expr

BNF: unary_expr

         ::= '+' expr

         | '-' expr

referenced by:

• expr

---

... generated by RR - Railroad Diagram Generator
